Forschungsgeräte

Computer Cluster

Beschreibung:

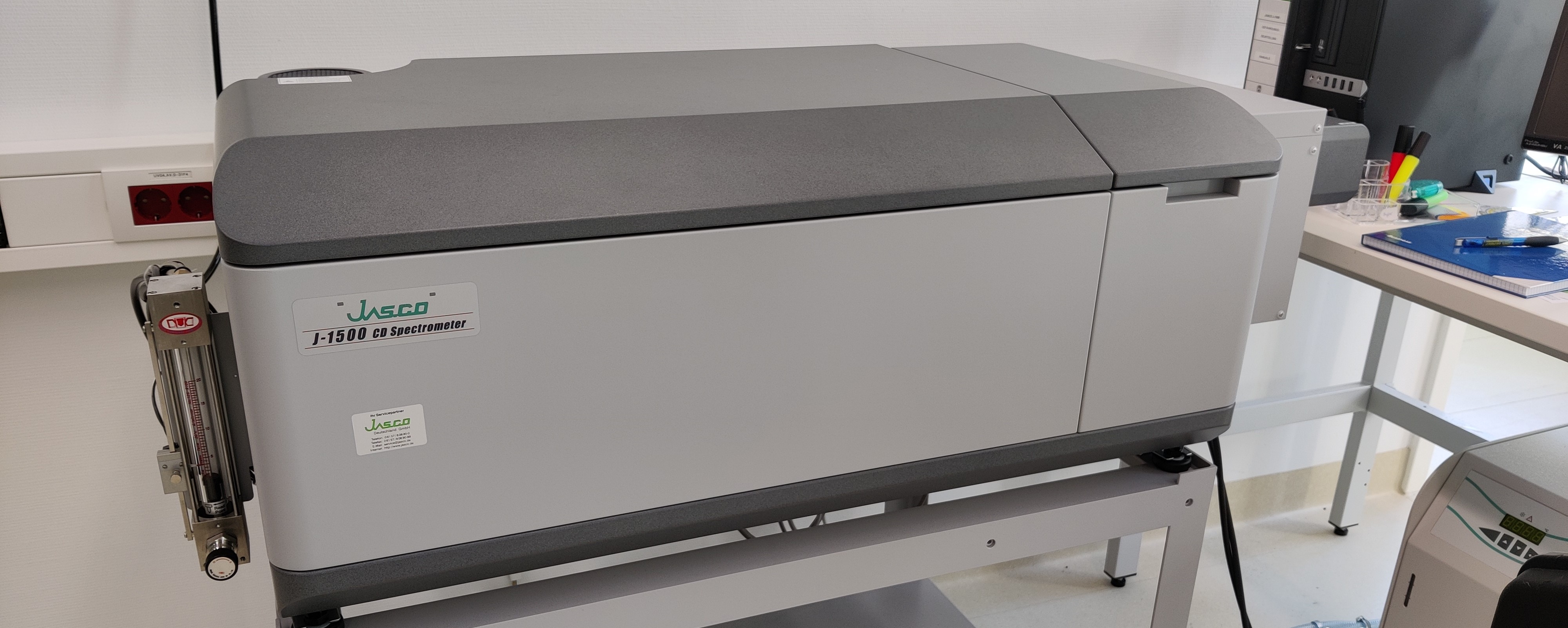

CD-Spektrometer Jasco J-1500

Technische Angaben:

  • Circular dichroism spectroscopy, optical rotary dispersion,
    photoluminescence detected CD spectroscopy, magnetic circular dichroism
  • Wavelength: 163 nm to 950 nm
  • Maximum field: 1.6 T
  • Sample type: liquids and thin films
  • Temperature range: 273 K to 373 K
Computer Cluster

Beschreibung:

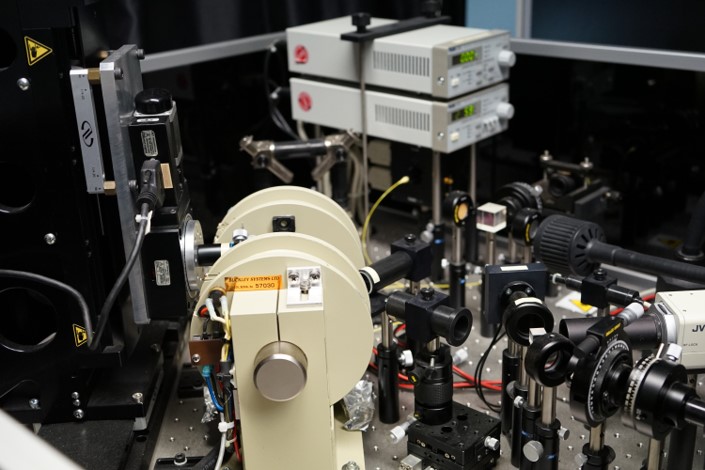

NanoMOKE

Technische Angaben:

  • Polar, longitudinal, and transverse MOKE hysteresis loops, SKM, Mapping
  • Wavelength: 632 nm
  • Maximum field: 0.5T
  • Sample type: thin films
  • Sample rotation: 0° to 330°
  • Temperature range: 77 K to 300 K
Computer Cluster

Beschreibung:

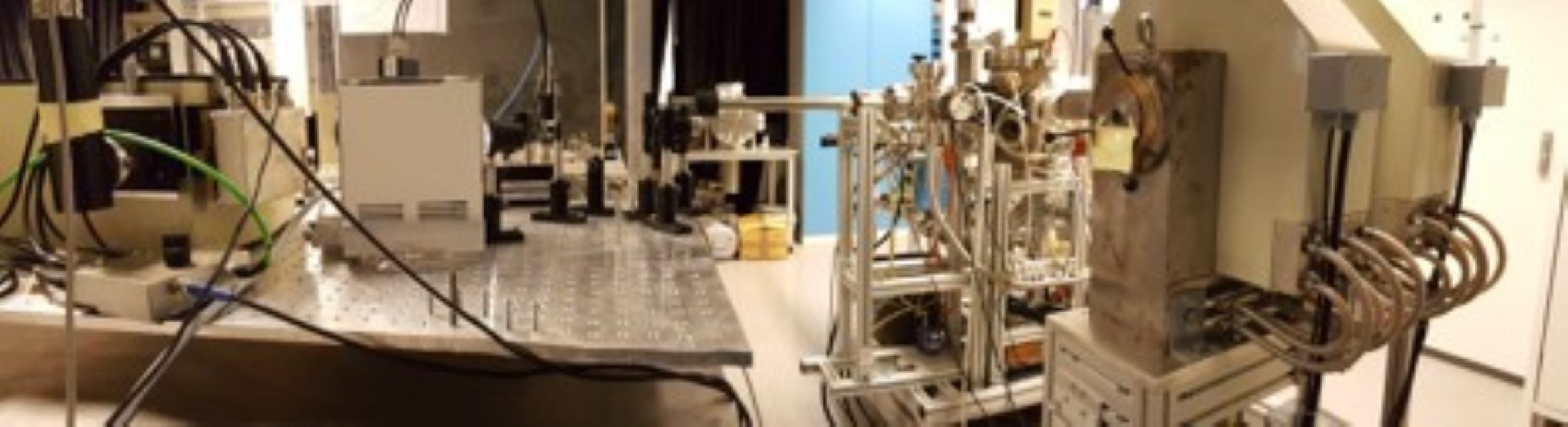

MOKE Spectrometer & RAS

Technische Angaben:

  • Magneto-optical Kerr effect spectroscopy and reflection anisotropy spectroscopy
  • Maximum field: ~2T
  • Sensitivity better than 1mrad
  • Sample type: liquids and thin films
  • Wavelength: 225 nm to 1690 nm
  • Temperature range: 300 K to 900 K
Computer Cluster

Beschreibung:

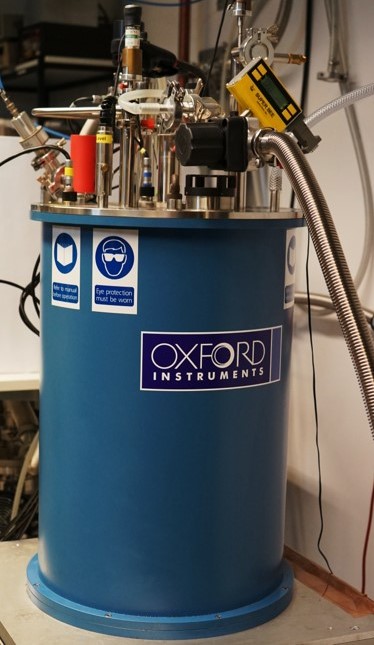

Magneto-optical cryostat for electrical measurements

Technische Angaben:

  • Maximum field 7T
  • Temperature range: 2K to 300K
Computer Cluster

Beschreibung:

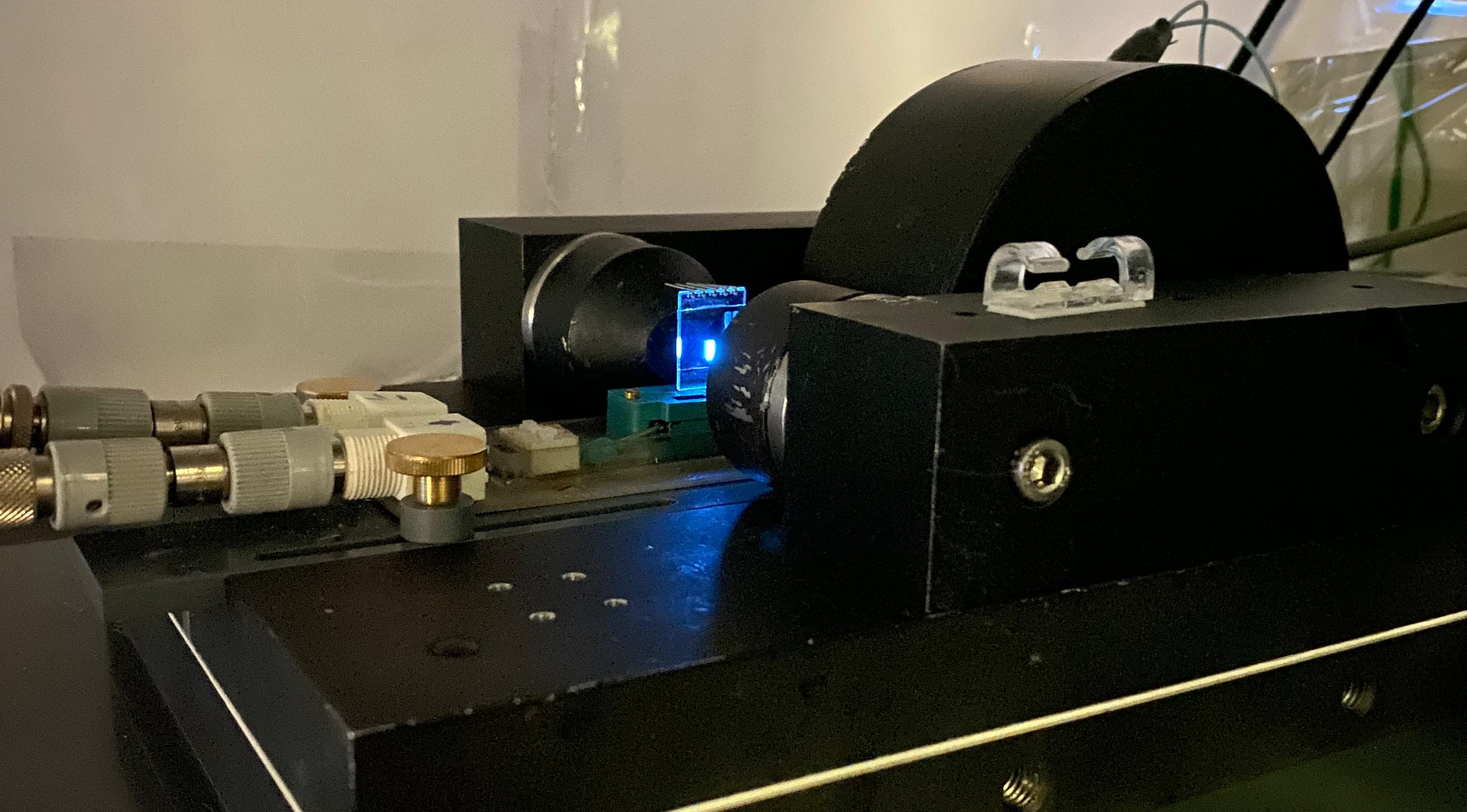

Magnetic field effects measurements

Technische Angaben:

  • Organic magnetoconductance & magneto-electroluminescence
  • Magnetic field: up to ~ 0.3 T
