Instrumentation:

Magneto-Optical Kerr Effect (MOKE) spectrometer:

Magneto-Optical Kerr Effect resides in the change of the polarization state of the light after reflection on a magnetic material (Fig. 1). The polarization state of the light is also changed when transmitted through a magnetic transparent sample, phenomenon that is called Faraday Effect.

Magneto-Optical Kerr Effect Spectrometer / fig 1
Fig. 1. Principle of the Kerr and Faraday effects

A change in magnetic field strength and direction causes a change in refractive index of the material. Therefore MOKE can be used to record magnetization hysteresis loops from ferromagnetic films.

Our home-made set-up works in the polar geometry, i.e. the light beam is quasi-normally incident on the sample surface. This geometry is sensitive to sample magnetization parallel to the sample surface normal.

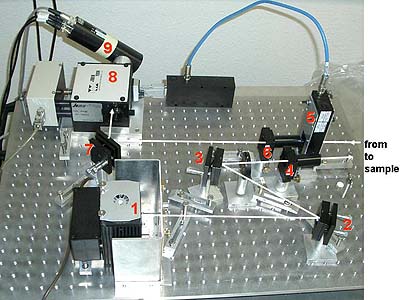

Fig. 2. MOKE - Set-up:
1 - Light source
2 - Concave mirror
3 - Plane mirror
4 - Polarizer
5 - Photoelastic modulator (PEM)
6 - Polarization Analyzer
7 - Concave mirror
8 - Monochromator
9 - Photomultiplier
The white line indicates the light path through the set-up.
Magneto-Optical Kerr Effect Spectrometer / fig 2
